APlusLift HW-10KBP 10,000LB 2-Post Floor Plate Car Lift
APlusLift HW-10KBP 10,000LB 2-Post Floor Plate Car Lift APlusLift HW-10KBP 10,000LB 2-Post Floor Plate Car Lift APlusLift HW-10KBP 10,000LB 2-Post Floor Plate Car Lift

APlusLift HW-10KBP 10,000LB 2-Post Floor Plate Car Lift

Model: HW-10KBP
$2,099.00 $2,779.00

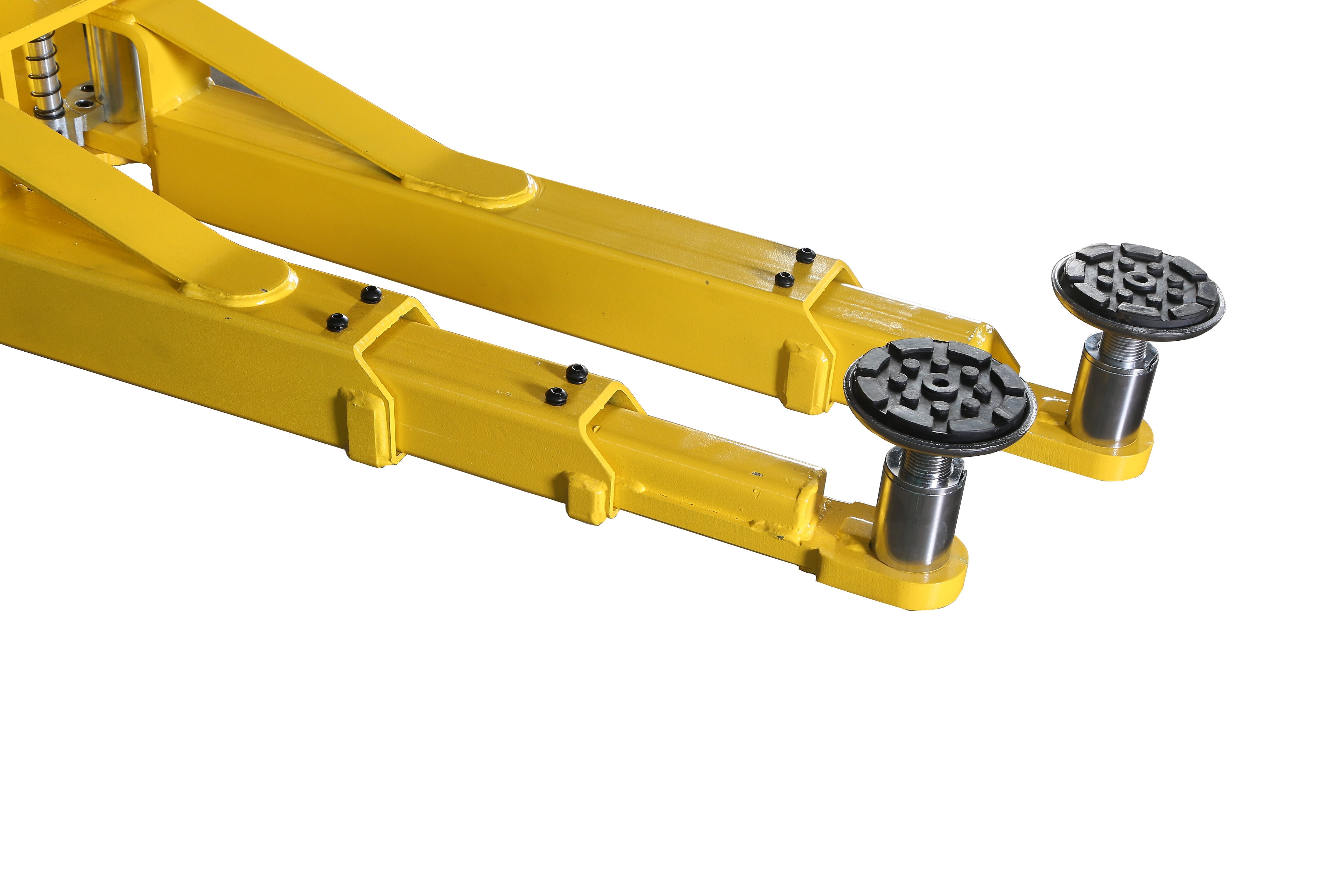

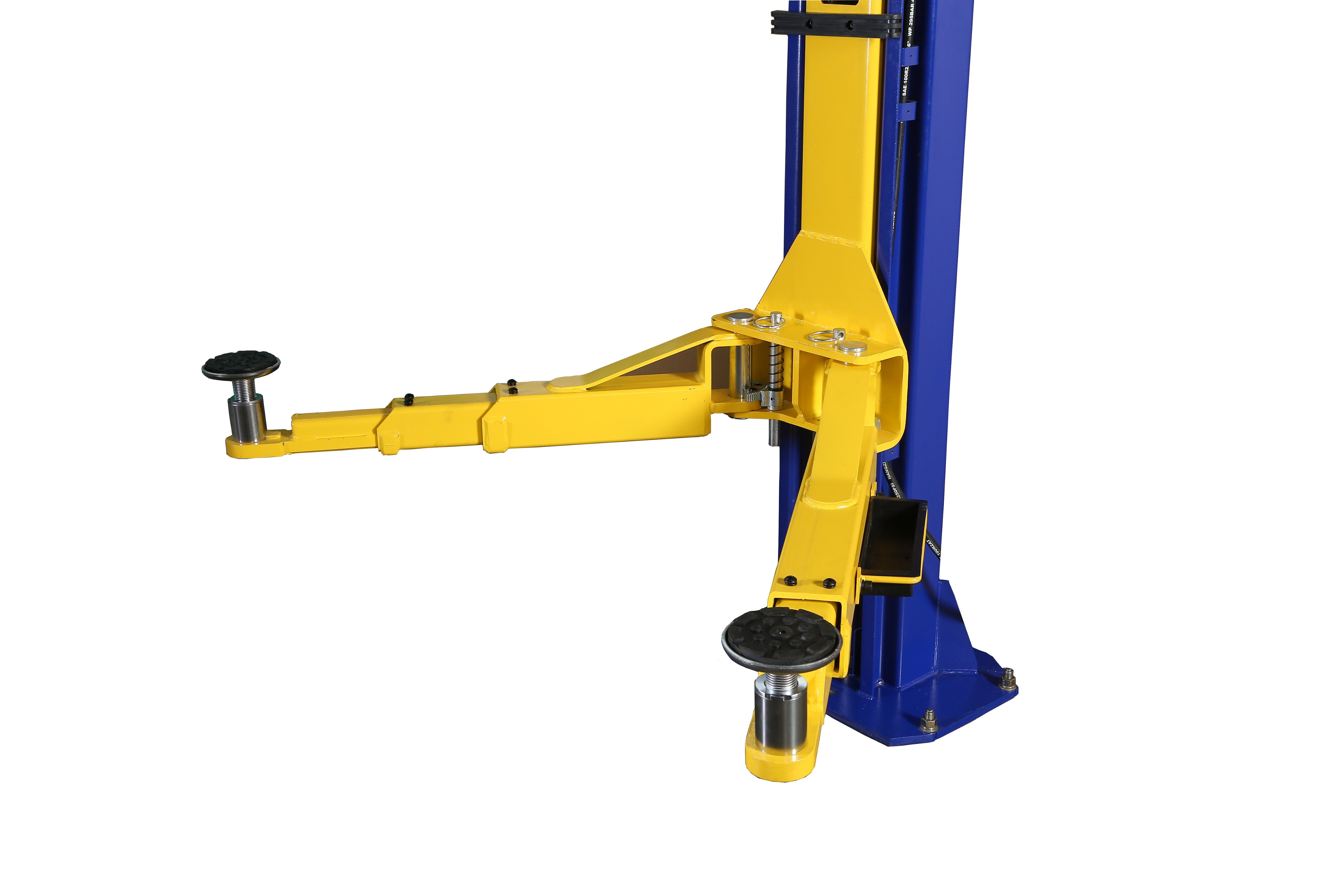

An affordable floor plate car lift featuring a strong double-S column design to support 10,000 lbs. CE certified structure and hydraulic system. Includes combo arm assembly with adjustable screw pads and comes with an industry-leading 3-year warranty valued at $499.

Brand: APlusLift
Contact for Price & Install Call (612) 597-7615
Free Shipping Lower 48 states
Professional Install Available in our service area
Warranty 3 Years

Specifications

Lifting Capacity 10,000 lbs
Style Floor Plate
Overall Height 113 5/8"
Overall Width 134 5/16"
Max Lift Height (with adapters) 81"
Max Lift Height (without adapters) 75"
Drive Through Width 100"
Column to Column Width 109"
Floor Plate Cross Section 10 5/8"W x 1 7/8"H
Motor 220V Single Phase, 3HP, 10A
Rise Time 50 seconds
Hydraulic Oil 3-5 gallons AW32/AW46 (not included)
Concrete Requirement 6" thick at 3,500 psi reinforced
Shipping Weight 1,370 lbs
Shipping Dimensions 113"L x 22"W x 40"H

Features

✓ CE Certified lift structure and hydraulic system
✓ 115% Dynamic Load / 150% Static Load tested
✓ Double point safety lock release
✓ Q355 steel carriage (stronger than Q235)
✓ Dual hydraulic cylinders with chain drive
✓ Heavy-duty 3/8" diameter cable with 5" pulley
✓ Automatic arm lock restraints
✓ Relief valve to prevent overloading
✓ Ultra-high molecular self-lubricating nylon slider
✓ Up-limit switch protection

What's Included

4 adjustable screw pads
4 pieces of 4" tall truck adapters
10 anchor bolts
10 shims
2 tool trays
2 toe guards
