APlusLift HW-10KOH 10,000LB 2-Post Overhead Car Lift
APlusLift HW-10KOH 10,000LB 2-Post Overhead Car Lift APlusLift HW-10KOH 10,000LB 2-Post Overhead Car Lift APlusLift HW-10KOH 10,000LB 2-Post Overhead Car Lift

APlusLift HW-10KOH 10,000LB 2-Post Overhead Car Lift

Model: HW-10KOH
$2,299.00 $2,929.00

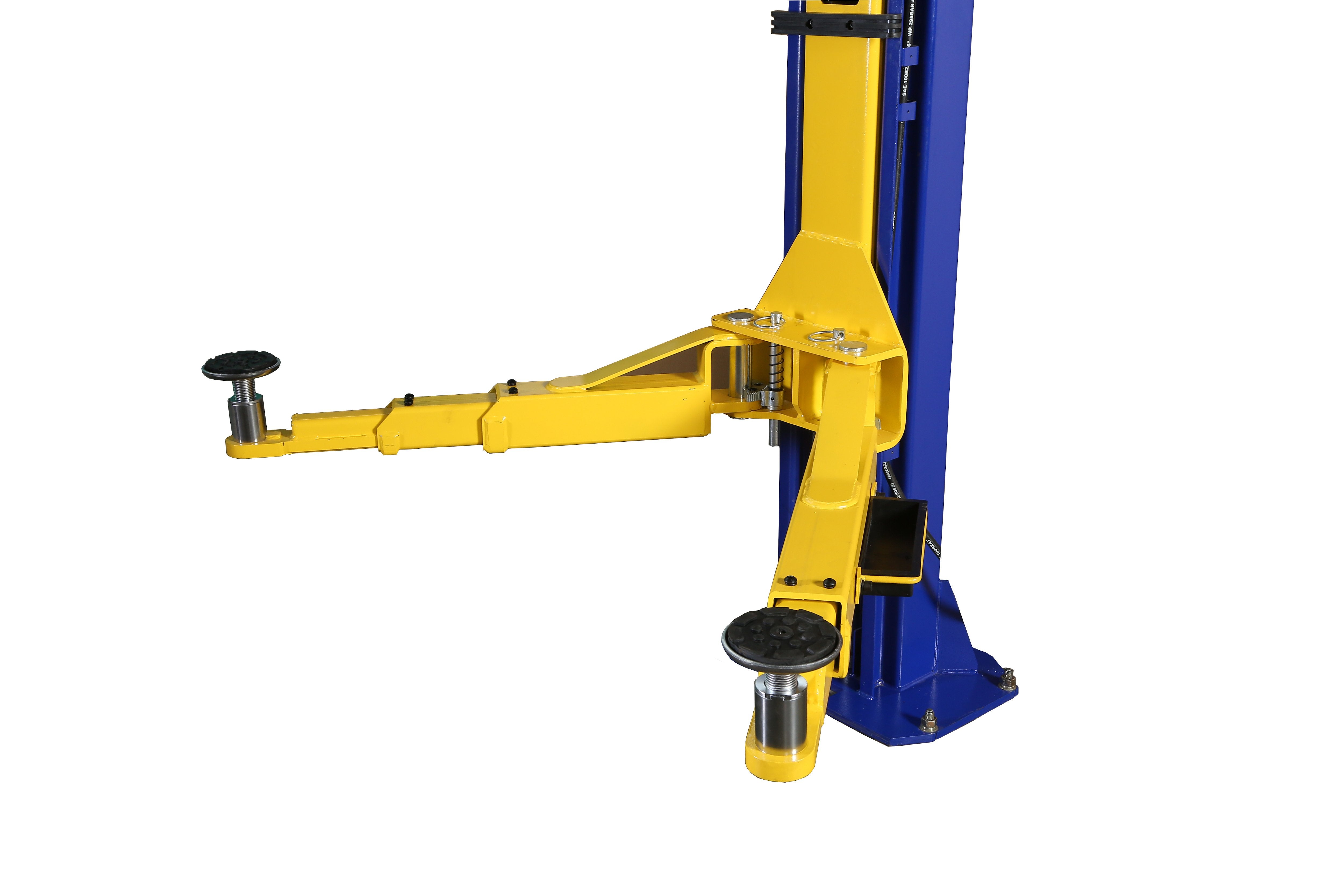

The HW-10KOH is a heavy-duty overhead 2-post car lift featuring a strong double-S column design supporting 10,000 lbs. CE certified structure and hydraulic system, third-party tested at 115% dynamic load capacity and 150% static load. Includes combo arm assembly with adjustable screw pads and an industry-leading 3-year warranty.

Brand: APlusLift
Contact for Price & Install Call (612) 597-7615
Free Shipping Lower 48 states
Professional Install Available in our service area
Warranty 3 Years

Specifications

Lifting Capacity 10,000 lbs
Style Overhead
Overall Height 143 3/16"
Overall Width 134 5/16"
Max Lift Height (with adapters) 81"
Max Lift Height (without adapters) 75"
Drive Through Width 100"
Column to Column Width 109"
Min Pad Height 4"
Motor 220V Single Phase, 3HP, 10A
Rise Time 50 seconds
Hydraulic Oil 3-5 gallons AW32/AW46 (not included)
Concrete Requirement 6" thick at 3,500 psi reinforced
Shipping Weight 1,470 lbs
Shipping Dimensions 113"L x 22"W x 40"H

Features

✓ CE Certified lift structure and hydraulic system
✓ 115% Dynamic Load / 150% Static Load tested
✓ Double point safety lock release
✓ Q355 steel carriage (stronger than Q235)
✓ Dual hydraulic cylinders with chain drive
✓ Heavy-duty 3/8" diameter cable with 5" pulley
✓ Automatic arm lock restraints
✓ Relief valve to prevent overloading
✓ Ultra-high molecular self-lubricating nylon slider
✓ Up-limit switch protection

What's Included

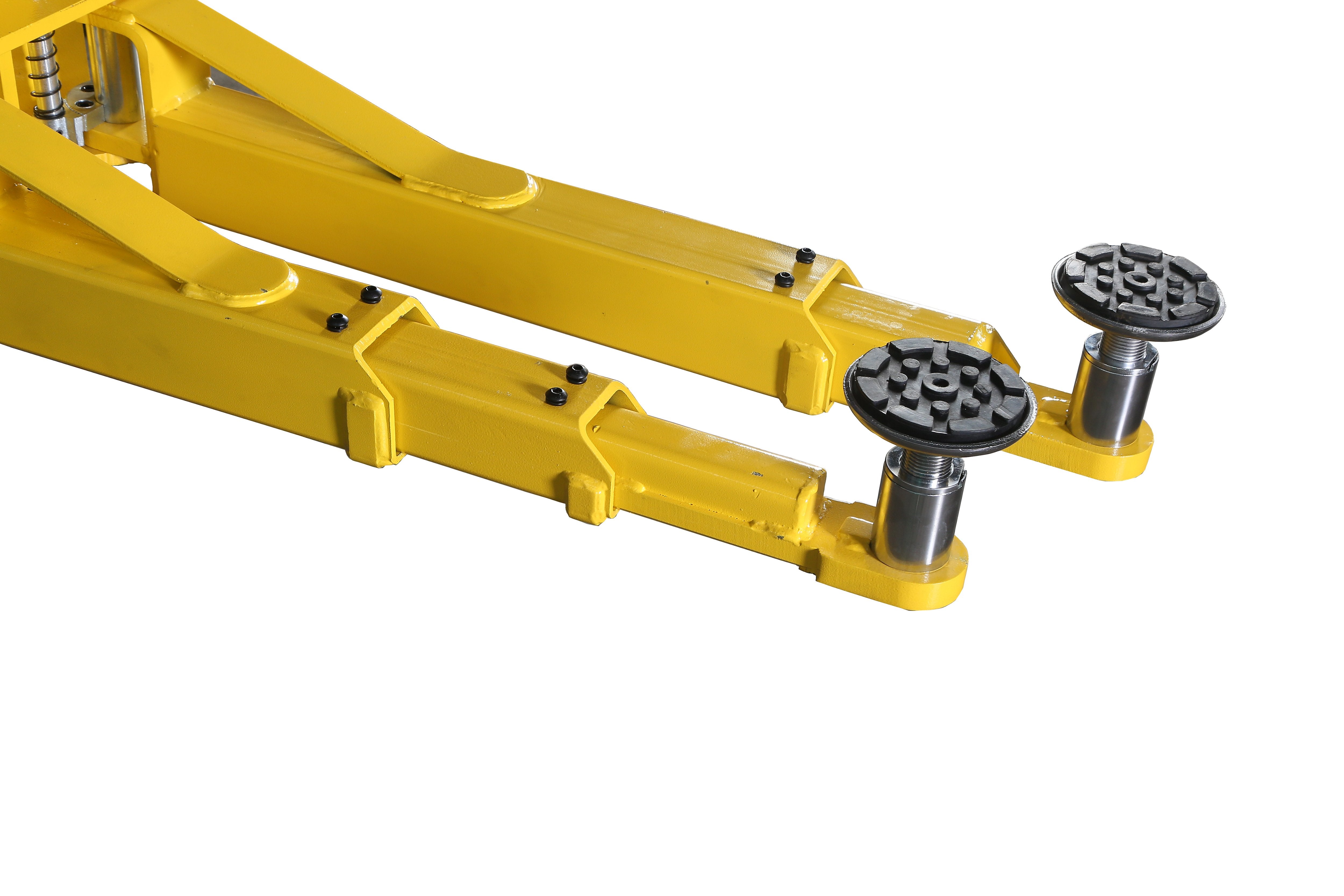

4 adjustable screw pads
4 pieces of 4" tall truck adapters
10 anchor bolts
10 shims
2 tool trays
2 toe guards
